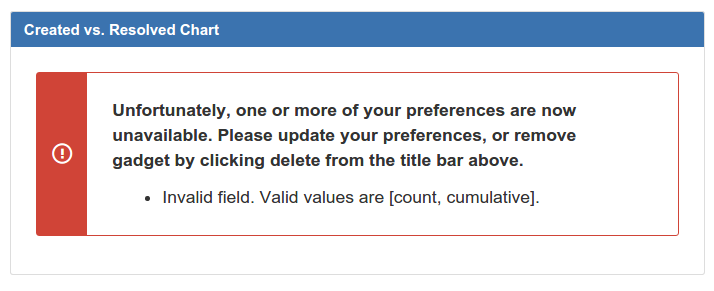

JIRA 7 bug JRA-59364 - Getting issue details... STATUS causes most 'Created vs. Resolved Chart' gadgets on dashboards to break with the error:

Invalid field. Valid values are [count, cumulative].

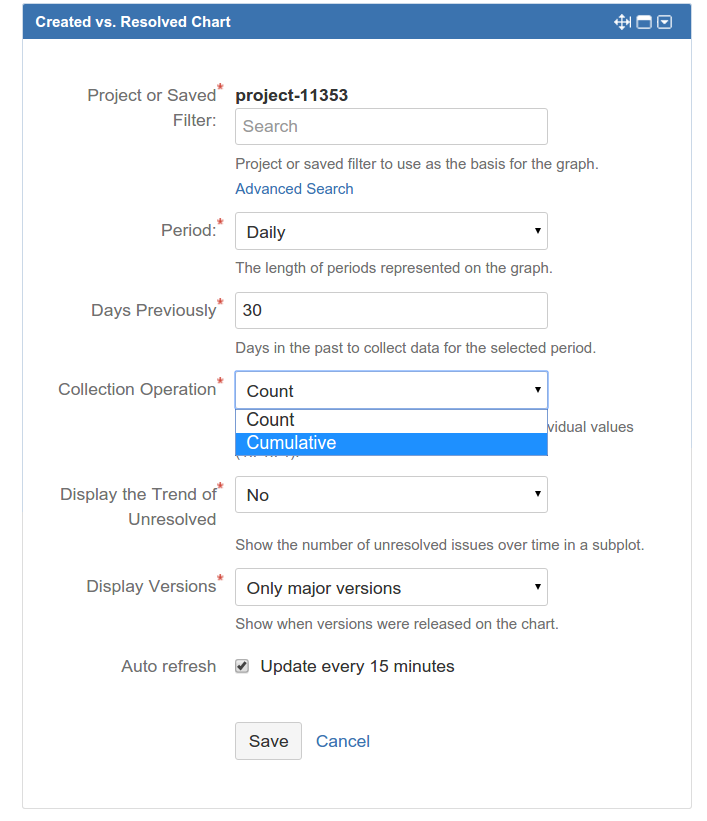

Broken portlets can be fixed individually by editing them and setting Collection Operation to either Cumulative (emulating the old default behaviour) or Count:

However only the dashboard owner can do this, and it's not exactly intuitive. This page describes a SQL fix to migrate all Created vs Resolved portlets to the new preference format.



Table of Contents

I haven't yet upgraded. Will I be affected?

If JRA-59364 - Getting issue details... STATUS isn't marked resolved, then probably, yes. Find out which dashboards will be affected by running the SQL:

jira=> SELECT DISTINCT portalpage.pagename AS "Dashboard",
	concat('http://jira.example.com/secure/Dashboard.jspa?selectPageId=', portalpage.id) AS URL,
	app_user.lower_user_name AS "Owner"
FROM portalpage JOIN portletconfiguration ON portalpage.id=portletconfiguration.portalpage
		JOIN cwd_user ON portalpage.username=cwd_user.user_name
		JOIN app_user ON cwd_user.user_name=app_user.user_key
WHERE portletconfiguration.gadget_xml ~'createdvsresolved-gadget.xml';
┌─────────────────────┬──────────────────────────────────────────────────────────────────┬─────────┐
│      Dashboard      │                               url                                │  Owner  │
├─────────────────────┼──────────────────────────────────────────────────────────────────┼─────────┤
│ My Custom Dashboard │ http://jira.example.com/secure/Dashboard.jspa?selectPageId=10200 │ jturner │
└─────────────────────┴──────────────────────────────────────────────────────────────────┴─────────┘

(1 row)

How do I fix it?

With JIRA shut down, ***BACK UP YOUR JIRA DATABASE***, and then run this SQL:

CREATE TEMP SEQUENCE prefid;
SELECT setval('prefid', max(id)::integer + 1) FROM gadgetuserpreference;
WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration)),
        prefs AS (select portletconfiguration, projectOrFilterId, regexp_replace(projectOrFilterId, '-\d+', '') AS type, regexp_replace(projectOrFilterId, '(filter|project)-', '') AS id, iscumulative FROM relevantprefs),
		newvals AS (select nextval('prefid') AS ID,
						portletconfiguration,
						t.userprefkey,
						CASE t.userprefkey
							WHEN 'operation' THEN (CASE prefs.isCumulative WHEN 'true' THEN 'cumulative' ELSE 'count' END)
							WHEN 'id' THEN prefs.id
							WHEN 'name' THEN CASE type WHEN 'project' THEN (SELECT pname FROM project WHERE id=prefs.id::integer) WHEN 'filter' THEN prefs.projectOrFilterId END
							WHEN 'type' THEN prefs.type
						END AS userprefvalue
		FROM prefs,
		(VALUES ('name'), ('operation'), ('id'), ('type')) AS t(userprefkey))
	INSERT INTO gadgetuserpreference SELECT * FROM newvals;
UPDATE sequence_value_item SET seq_id = (SELECT ceil(max(id)/100)*100 FROM gadgetuserpreference) WHERE seq_name='GadgetUserPreference';

There may be Postgres'isms in this SQL. Proceed with caution.

What's going on?

Each gadget has a bunch of parameters:

These parameters are saved in the gadgetuserpreferences database table.

In JIRA 7.x, Atlassian reimplemented the Created vs Resolved gadget, and changed the parameters. Here is a before/after diff on the params for a filter-using portlet (see Using database diffs to see what JIRA is doing for details on the technique):

and a project-using portlet:

Specifically, they introduced 4 new parameters, type, id, name and operation, whose values are derived from the old parameters.

Atlassian should have written an 'upgrade task' to derive these new parameters from the old, and delete the old (to avoid confusing future generations). That is the topic of JRA-59364 - Getting issue details... STATUS

But we can derive the new params ourselves with a bit of SQL.

Deriving the SQL Fix

Background: database tables involved in JIRA portlets

In the JIRA database:

  • The portalpage table stores user's dashboards, e.g. "My Custom Dashboard".
  • The portletconfiguration table stores individual portlets on dashboards. E.g. it records that there are N gadgets on "My Custom Dashboard", as well as their position and type.
  • The gadgetuserpreference table stores portlet configuration details. E.g. for a "Created vs Resolved" portlet it stores the filter ID the portlet displays data from.
Database tableSample data
portalpage
select * from portalpage where id=10200;
┌───────┬──────────┬─────────────────────┬─────────────┬──────────┬───────────┬────────┬───────────┐
│  id   │ username │      pagename       │ description │ sequence │ fav_count │ layout │ ppversion │
├───────┼──────────┼─────────────────────┼─────────────┼──────────┼───────────┼────────┼───────────┤
│ 10200 │ jturner  │ My Custom Dashboard │ ␀           │        ␀ │         1 │ AA     │        11 │
└───────┴──────────┴─────────────────────┴─────────────┴──────────┴───────────┴────────┴───────────┘
(1 row)
portletconfiguration
select * from portletconfiguration where portalpage=10200;
┌───────┬────────────┬────────────┬───────────────┬─────────────┬────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┬────────┬───────────────────────────────┐
│  id   │ portalpage │ portlet_id │ column_number │ positionseq │                                                         gadget_xml                                                         │ color  │ dashboard_module_complete_key │
├───────┼────────────┼────────────┼───────────────┼─────────────┼────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┼────────┼───────────────────────────────┤
│ 10801 │      10200 │ ␀          │             1 │           0 │ rest/gadgets/1.0/g/com.atlassian.jira.gadgets:created-vs-resolved-issues-chart-gadget/gadgets/createdvsresolved-gadget.xml │ color1 │ ␀                             │
│ 10803 │      10200 │ ␀          │             0 │           0 │ rest/gadgets/1.0/g/com.atlassian.jira.gadgets:created-vs-resolved-issues-chart-gadget/gadgets/createdvsresolved-gadget.xml │ color1 │ ␀                             │
│ 10802 │      10200 │ ␀          │             0 │           1 │ rest/gadgets/1.0/g/com.atlassian.jira.gadgets:pie-chart-gadget/gadgets/piechart-gadget.xml                                 │ color1 │ ␀                             │
│ 10800 │      10200 │ ␀          │             0 │           2 │ rest/gadgets/1.0/g/com.atlassian.jira.gadgets:assigned-to-me-gadget/gadgets/assigned-to-me-gadget.xml                      │ color1 │ ␀                             │
└───────┴────────────┴────────────┴───────────────┴─────────────┴────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┴────────┴───────────────────────────────┘
(4 rows)
gadgetuserpreference
Pre-JIRA 7.0.5JIRA 7.0.5+
select * from gadgetuserpreference where portletconfiguration=10801 order by userprefkey;
┌───────┬──────────────────────┬─────────────────────┬───────────────┐
│  id   │ portletconfiguration │     userprefkey     │ userprefvalue │
├───────┼──────────────────────┼─────────────────────┼───────────────┤
│ 12398 │                10801 │ daysprevious        │ 600           │
│ 12390 │                10801 │ isConfigured        │ true          │
│ 12393 │                10801 │ isCumulative        │ true          │
│ 12392 │                10801 │ isPopup             │ false         │
│ 12396 │                10801 │ periodName          │ monthly       │
│ 12397 │                10801 │ projectOrFilterId   │ filter-10601  │
│ 12394 │                10801 │ refresh             │ false         │
│ 12395 │                10801 │ showUnresolvedTrend │ false         │
│ 12391 │                10801 │ versionLabel        │ major         │
└───────┴──────────────────────┴─────────────────────┴───────────────┘
(9 rows)
select * from gadgetuserpreference where portletconfiguration=10801 order by userprefkey;
┌───────┬──────────────────────┬─────────────────────┬───────────────┐
│  id   │ portletconfiguration │     userprefkey     │ userprefvalue │
├───────┼──────────────────────┼─────────────────────┼───────────────┤
│ 12525 │                10801 │ daysprevious        │ 600           │
│ 12526 │                10801 │ id                  │ 10601         │
│ 12515 │                10801 │ isConfigured        │ true          │
│ 12523 │                10801 │ isCumulative        │ true          │
│ 12516 │                10801 │ isPopup             │ false         │
│ 12524 │                10801 │ name                │ filter-10601  │
│ 12527 │                10801 │ operation           │ cumulative    │
│ 12519 │                10801 │ periodName          │ monthly       │
│ 12520 │                10801 │ projectOrFilterId   │ filter-10601  │
│ 12517 │                10801 │ refresh             │ false         │
│ 12518 │                10801 │ showUnresolvedTrend │ false         │
│ 12521 │                10801 │ type                │ filter        │
│ 12522 │                10801 │ versionLabel        │ major         │
└───────┴──────────────────────┴─────────────────────┴───────────────┘
(13 rows)





SQL part 1: collecting relevant old-portlet data

Let us look at the newly introduced preferences in more detail:

The new prefs are:

  • type is project or filter, depending on the portlet's data source
  • id is the ID of the filter or project
  • name is a human-readable project or filter name, where:
    • if type is a project, then name should be the project name, and is actually displayed in the portlet.
    • if type is a filter, it doesn't really matter what name is – JIRA set it to filter-xxxxx and doesn't use it.
  • operation has value cumulative or count

Recreating the missing parameters

Notice that all of the 4 new parameter values can be derived just by looking at the old projectOrFilterId and isCumulative parameters.

So first we write some SQL to print the projectOrFilterId and isCumulative parameters for each Created vs Resolved portlet:

WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration))
	SELECT * From relevantprefs;
┌──────────────────────┬───────────────────┬──────────────┐
│ portletconfiguration │ projectorfilterid │ iscumulative │
├──────────────────────┼───────────────────┼──────────────┤
│                10801 │ filter-10601      │ true         │
│                10803 │ filter-10601      │ false        │
│                10900 │ project-10800     │ true         │
└──────────────────────┴───────────────────┴──────────────┘
(3 rows)

The same, but using regexp_replace() to break projectorfilterid into its constituent parts:

jira=> WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration)),
        prefs AS (select portletconfiguration, projectOrFilterId, regexp_replace(projectOrFilterId, '-\d+', '') AS type, regexp_replace(projectOrFilterId, '(filter|project)-', '') AS id, iscumulative FROM relevantprefs)
   SELECT * from prefs;
┌──────────────────────┬───────────────────┬─────────┬───────┬──────────────┐
│ portletconfiguration │ projectorfilterid │  type   │  id   │ iscumulative │
├──────────────────────┼───────────────────┼─────────┼───────┼──────────────┤
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │
│                10900 │ project-10800     │ project │ 10800 │ true         │
└──────────────────────┴───────────────────┴─────────┴───────┴──────────────┘
(3 rows)

SQL part 2: inserting new rows

The trick here is generating 4 new rows for each matching row above. We can create a 'fake' table to cross-join with our relevantprefs using a VALUES clause:

jira=> select * from (VALUES ('name'), ('operation'), ('id'), ('type')) AS t(userprefkey);
┌─────────────┐
│ userprefkey │
├─────────────┤
│ name        │
│ operation   │
│ id          │
│ type        │
└─────────────┘
(4 rows)

Then 4 new rows for each of our portlets yields:

WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration)),
        prefs AS (select portletconfiguration, projectOrFilterId, regexp_replace(projectOrFilterId, '-\d+', '') AS type, regexp_replace(projectOrFilterId, '(filter|project)-', '') AS id, iscumulative FROM relevantprefs)
   SELECT * from prefs,
		(VALUES ('name'), ('operation'), ('id'), ('type')) AS t(userprefkey);
┌──────────────────────┬───────────────────┬─────────┬───────┬──────────────┬─────────────┐
│ portletconfiguration │ projectorfilterid │  type   │  id   │ iscumulative │ userprefkey │
├──────────────────────┼───────────────────┼─────────┼───────┼──────────────┼─────────────┤
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ name        │
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ operation   │
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ id          │
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ type        │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ name        │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ operation   │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ id          │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ type        │
│                10900 │ project-10800     │ project │ 10800 │ true         │ name        │
│                10900 │ project-10800     │ project │ 10800 │ true         │ operation   │
│                10900 │ project-10800     │ project │ 10800 │ true         │ id          │
│                10900 │ project-10800     │ project │ 10800 │ true         │ type        │
└──────────────────────┴───────────────────┴─────────┴───────┴──────────────┴─────────────┘
(12 rows)

We now have a row containing all relevant old params, plus the new parameter name ( name, operation, id and type). Now we just insert a SELECT clause to derive the new userprefvalue from the old params:

WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration)),
        prefs AS (select portletconfiguration, projectOrFilterId, regexp_replace(projectOrFilterId, '-\d+', '') AS type, regexp_replace(projectOrFilterId, '(filter|project)-', '') AS id, iscumulative FROM relevantprefs)
   SELECT *, CASE t.userprefkey
							WHEN 'operation' THEN (CASE prefs.isCumulative WHEN 'true' THEN 'cumulative' ELSE 'count' END)
							WHEN 'id' THEN prefs.id
							WHEN 'name' THEN CASE type WHEN 'project' THEN (SELECT pname FROM project WHERE id=prefs.id::integer) WHEN 'filter' THEN prefs.projectOrFilterId END
							WHEN 'type' THEN prefs.type
						END AS userprefvalue
		FROM prefs,
		(VALUES ('name'), ('operation'), ('id'), ('type')) AS t(userprefkey);
┌──────────────────────┬───────────────────┬─────────┬───────┬──────────────┬─────────────┬───────────────┐
│ portletconfiguration │ projectorfilterid │  type   │  id   │ iscumulative │ userprefkey │ userprefvalue │
├──────────────────────┼───────────────────┼─────────┼───────┼──────────────┼─────────────┼───────────────┤
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ name        │ filter-10601  │
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ operation   │ cumulative    │
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ id          │ 10601         │
│                10801 │ filter-10601      │ filter  │ 10601 │ true         │ type        │ filter        │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ name        │ filter-10601  │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ operation   │ count         │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ id          │ 10601         │
│                10803 │ filter-10601      │ filter  │ 10601 │ false        │ type        │ filter        │
│                10900 │ project-10800     │ project │ 10800 │ true         │ name        │ CrowdFlower   │
│                10900 │ project-10800     │ project │ 10800 │ true         │ operation   │ cumulative    │
│                10900 │ project-10800     │ project │ 10800 │ true         │ id          │ 10800         │
│                10900 │ project-10800     │ project │ 10800 │ true         │ type        │ project       │
└──────────────────────┴───────────────────┴─────────┴───────┴──────────────┴─────────────┴───────────────┘
(12 rows)

Inserting data: dealing with IDs

We've successfully derived the new preferences needed. Now we just need to insert it into the gadgetuserpreferences table.

The gadgetuserpreferences table has an ID field which must be unique:

redradish_jira=> \d gadgetuserpreference
             Table "public.gadgetuserpreference"
┌──────────────────────┬────────────────────────┬───────────┐
│        Column        │          Type          │ Modifiers │
├──────────────────────┼────────────────────────┼───────────┤
│ id                   │ numeric(18,0)          │ not null  │
│ portletconfiguration │ numeric(18,0)          │           │
│ userprefkey          │ character varying(255) │           │
│ userprefvalue        │ text                   │           │
└──────────────────────┴────────────────────────┴───────────┘
Indexes:
    "pk_gadgetuserpreference" PRIMARY KEY, btree (id)
    "userpref_portletconfiguration" btree (portletconfiguration)

So we need to generate a sequence of IDs, starting at 1 more than the current max. This is done with a Postgres sequence:

CREATE TEMP SEQUENCE prefid;
SELECT setval('prefid', max(id)::integer + 1) FROM gadgetuserpreference;
┌────────┐
│ setval │
├────────┤
│  12712 │
└────────┘
(1 row)

Now we add a nextval('prefid') SELECT clause to our SQL, and trim down the results to match the gadgetuserprefs columns:

WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration)),
        prefs AS (select portletconfiguration, projectOrFilterId, regexp_replace(projectOrFilterId, '-\d+', '') AS type, regexp_replace(projectOrFilterId, '(filter|project)-', '') AS id, iscumulative FROM relevantprefs),
		newvals AS (select nextval('prefid') AS ID,
						portletconfiguration,
						t.userprefkey,
						CASE t.userprefkey
							WHEN 'operation' THEN (CASE prefs.isCumulative WHEN 'true' THEN 'cumulative' ELSE 'count' END)
							WHEN 'id' THEN prefs.id
							WHEN 'name' THEN CASE type WHEN 'project' THEN (SELECT pname FROM project WHERE id=prefs.id::integer) WHEN 'filter' THEN prefs.projectOrFilterId END
							WHEN 'type' THEN prefs.type
						END AS userprefvalue
		FROM prefs,
		(VALUES ('name'), ('operation'), ('id'), ('type')) AS t(userprefkey))
	SELECT * FROM newvals;
┌───────┬──────────────────────┬─────────────┬───────────────┐
│  id   │ portletconfiguration │ userprefkey │ userprefvalue │
├───────┼──────────────────────┼─────────────┼───────────────┤
│ 12725 │                10801 │ name        │ filter-10601  │
│ 12726 │                10801 │ operation   │ cumulative    │
│ 12727 │                10801 │ id          │ 10601         │
│ 12728 │                10801 │ type        │ filter        │
│ 12729 │                10803 │ name        │ filter-10601  │
│ 12730 │                10803 │ operation   │ count         │
│ 12731 │                10803 │ id          │ 10601         │
│ 12732 │                10803 │ type        │ filter        │
│ 12733 │                10900 │ name        │ CrowdFlower   │
│ 12734 │                10900 │ operation   │ cumulative    │
│ 12735 │                10900 │ id          │ 10800         │
│ 12736 │                10900 │ type        │ project       │
└───────┴──────────────────────┴─────────────┴───────────────┘
(12 rows)

And there we have exactly what we want to INSERT:

WITH gadgetprefs AS (select gup.* from gadgetuserpreference gup JOIN portletconfiguration pc ON gup.portletconfiguration=pc.id WHERE pc.gadget_xml~'createdvsresolved-gadget.xml'),
        filterprefs AS (select * from gadgetprefs WHERE userprefkey='projectOrFilterId'),
        cumulativeprefs AS (select * from gadgetprefs WHERE userprefkey='isCumulative'),
        relevantprefs AS (select portletconfiguration, filterprefs.userprefvalue AS projectOrFilterId, cumulativeprefs.userprefvalue AS isCumulative FROM filterprefs JOIN cumulativeprefs USING (portletconfiguration)),
        prefs AS (select portletconfiguration, projectOrFilterId, regexp_replace(projectOrFilterId, '-\d+', '') AS type, regexp_replace(projectOrFilterId, '(filter|project)-', '') AS id, iscumulative FROM relevantprefs),
		newvals AS (select nextval('prefid') AS ID,
						portletconfiguration,
						t.userprefkey,
						CASE t.userprefkey
							WHEN 'operation' THEN (CASE prefs.isCumulative WHEN 'true' THEN 'cumulative' ELSE 'count' END)
							WHEN 'id' THEN prefs.id
							WHEN 'name' THEN CASE type WHEN 'project' THEN (SELECT pname FROM project WHERE id=prefs.id::integer) WHEN 'filter' THEN prefs.projectOrFilterId END
							WHEN 'type' THEN prefs.type
						END AS userprefvalue
		FROM prefs,
		(VALUES ('name'), ('operation'), ('id'), ('type')) AS t(userprefkey))
	INSERT INTO gadgetuserpreference SELECT * FROM newvals;

INSERT 0 12
Time: 30.402 ms

Updating the sequence_value_item table

JIRA's database library (Ofbiz) has an odd way of tracking the maximum ID of a table. It has a table called sequence_value_item which stores the max ID of each table, rounded up to the nearest 100:

SELECT max(id) FROM gadgetuserpreference;
┌───────┐
│  max  │
├───────┤
│ 12711 │
└───────┘
(1 row)

SELECT * from sequence_value_item WHERE seq_name='GadgetUserPreference';
┌──────────────────────┬────────┐
│       seq_name       │ seq_id │
├──────────────────────┼────────┤
│ GadgetUserPreference │  12800 │
└──────────────────────┴────────┘
(1 row)

So after manually inserting rows in a JIRA table, one must always update sequence_value_item. The new value can be derived from max(id) by a divide-then-round-up-then-multiple trick:

UPDATE sequence_value_item SET seq_id = (SELECT ceil(max(id)/100)*100 FROM gadgetuserpreference) WHERE seq_name='GadgetUserPreference' RETURNING seq_id;
┌────────┐
│ seq_id │
├────────┤
│  12800 │
└────────┘
(1 row)

Shameless Plug

My business, Red Radish Consulting, offers a quarterly JIRA/Confluence upgrade service. The fix described here was derived on-the-fly for a client. Save yourself the hassle of dealing with exciting bugs like this, and contact us for a quote!

  • No labels
